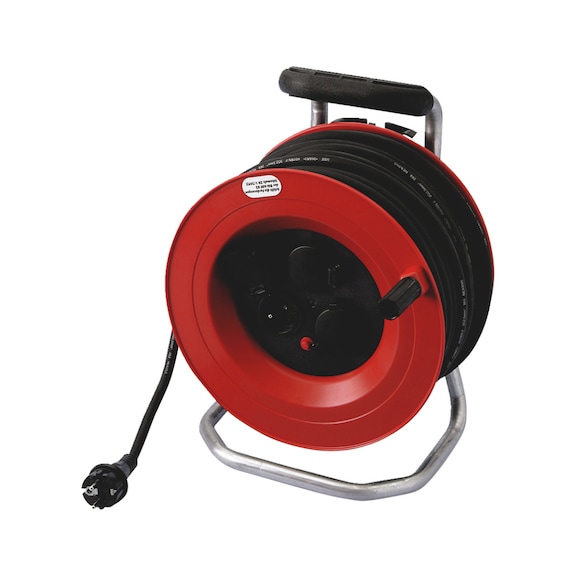

250 V plastic cable reel - CBLREEL-BE-PLA-(H07RN-F3G2,5)-33M

250 V plastic cable reel

Plastic cable reel H07RN-F 3G2.5 mm²
CBLREEL-BE-PLA-(H07RN-F3G2,5)-33M

Art.-no. 0774233325
EAN 4053479008745
All versions

Prices for customers after login

Show availability in Würth shop
Exclusively for trade customers

Register now and access more than 125,000 products

K2 in accordance with DGUV Information 203-006 (formerly BGI 608)
  • Drum housing made of special plastic

  • Generously dimensioned, swivelling rotary crank handle

  • Innovative plug mounting

  • Locking brake with "Open/Close switch"

  • RN cable approved for use in difficult construction conditions in line with VDE 0100 Part 704

  • Made in Germany
Notice

Thermal circuit breaker with trip-free mechanism, resettable by hand after cooling.


Application area
  • For harsh conditions in construction, industry, trade, agriculture etc.

  • For indoor and outdoor use.

Cable type

H07RN-F3G2.5 mm²

Cable length

33 m

Design

3 grounding-contact sockets, 16 A, 250 V

Nominal current

16 A

Nominal voltage

250 V/AC

IP protection class

IP X4

Length x width x height

290 x 210 x 395 mm

Overheating protection

Thermal circuit-breaker with restarting protection as per VDE 0620

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Spare parts for this product:
Thermal protection
Thermal protection

SP-THERMAL CIRCUIT BREAKER-230V

x 1 pcs
Socket outlet
Socket outlet

SP-SOCKET-250V-16A-IP54-BLACK-CABLEDRUM

x 1 pcs
Crank handle
Crank handle

SP-PLASTICCRANK-(F.PLASTIC CABLE DRUMS)

x 1 pcs
